Appearance Design
The exterior design of Arcfox Koala is simple but not losing delicacy, and the whole car adopts a large number of streamlined design elements, creating a dynamic and friendly visual effect. The side of the car adopts a floating roof design, adding a fashionable flavor. The hidden door handles and side sliding door design not only enhance the aesthetics of the vehicle, but also provide convenience for getting in and out of the car. In the rear part, the tail light group adopts the C-shaped element through the design, which improves the recognition degree.
Interior Style

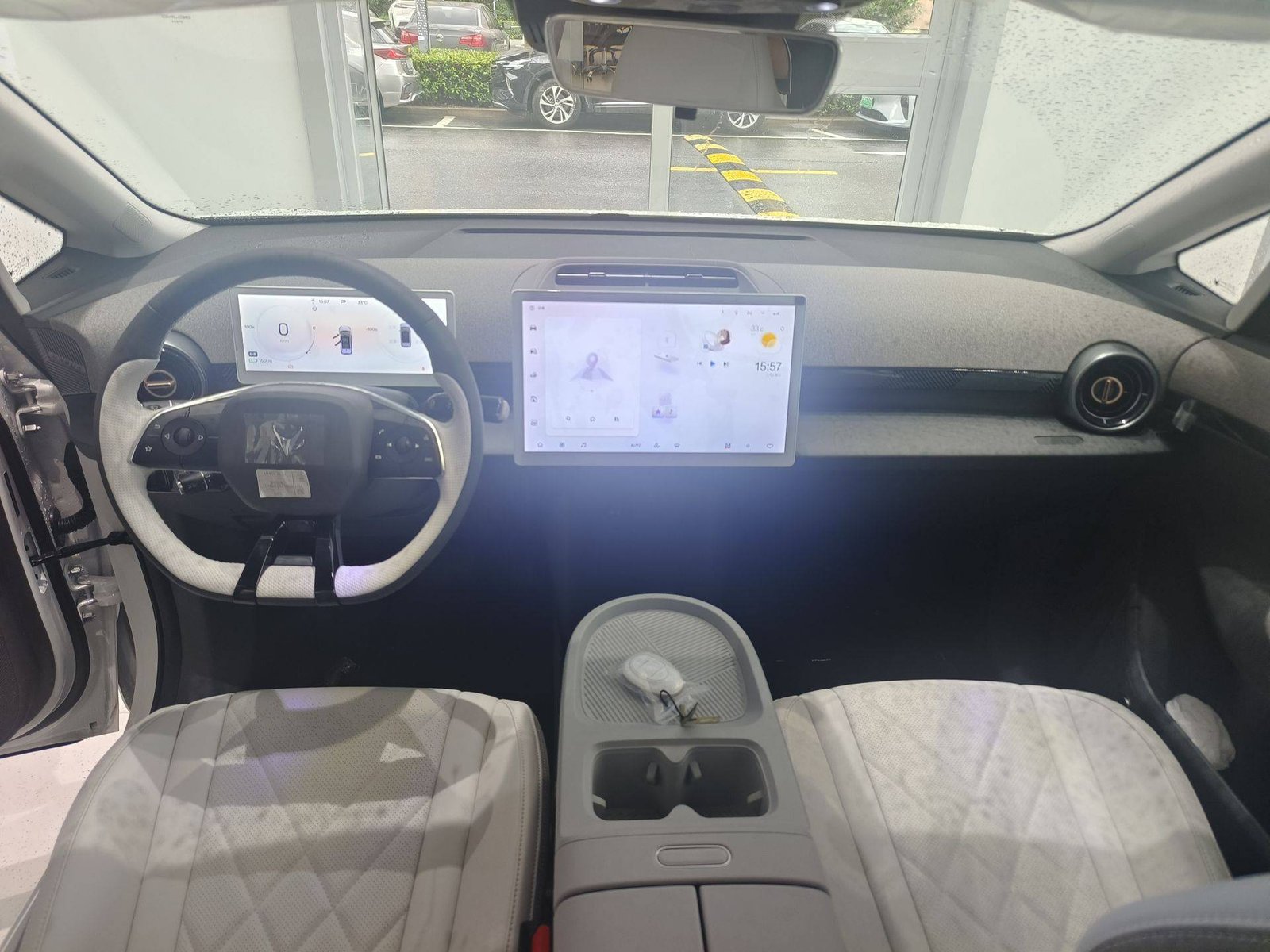

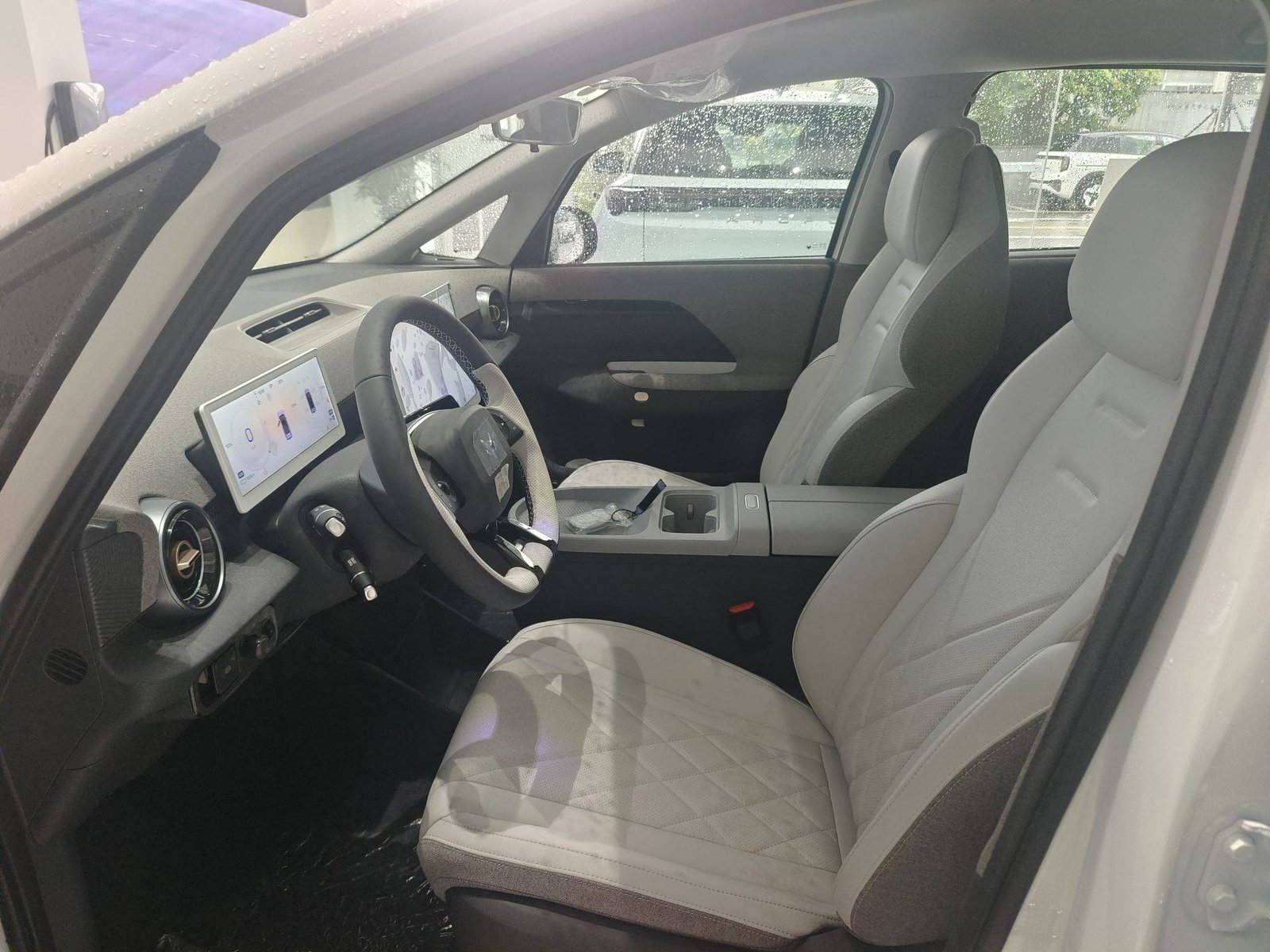

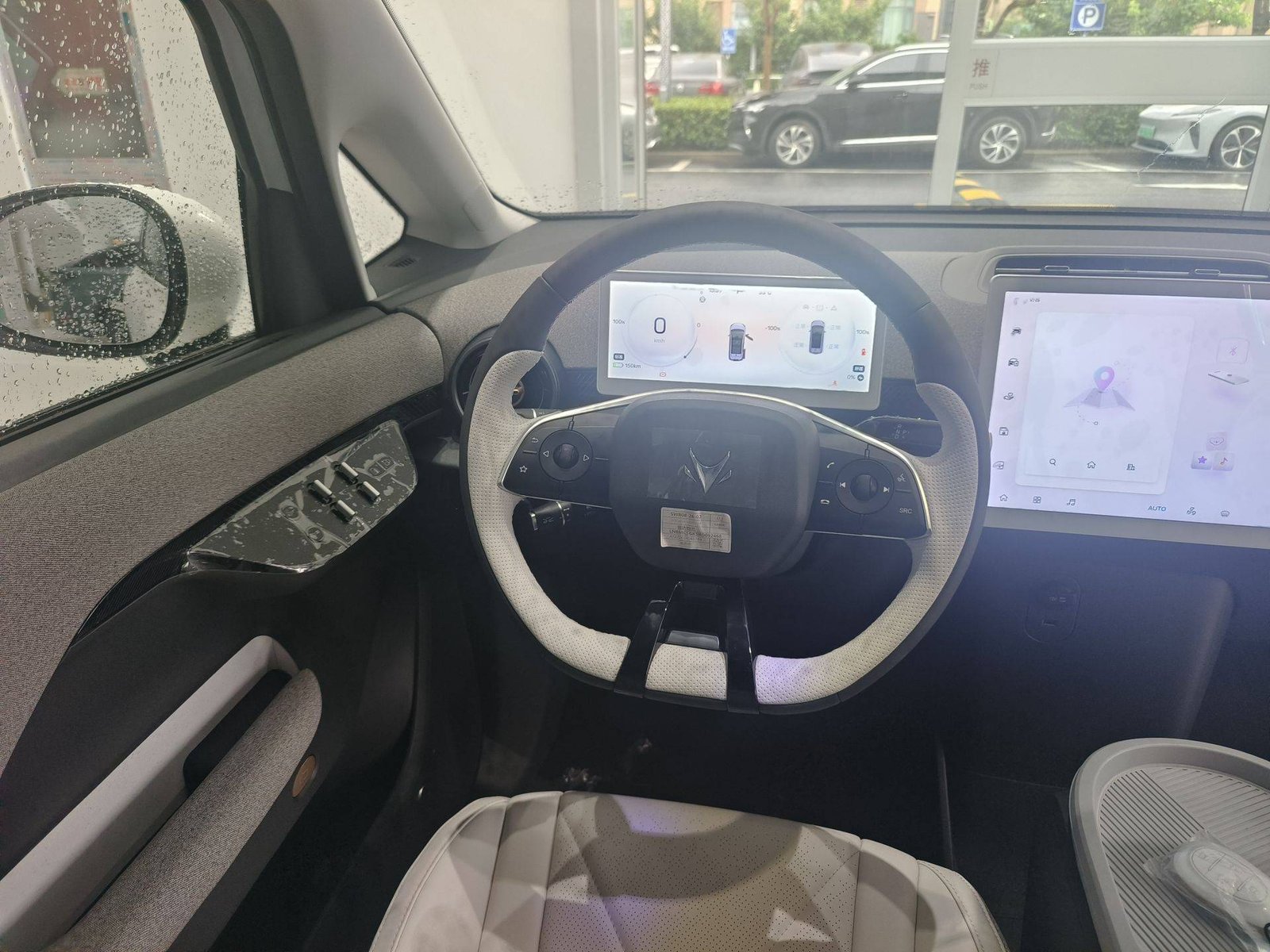

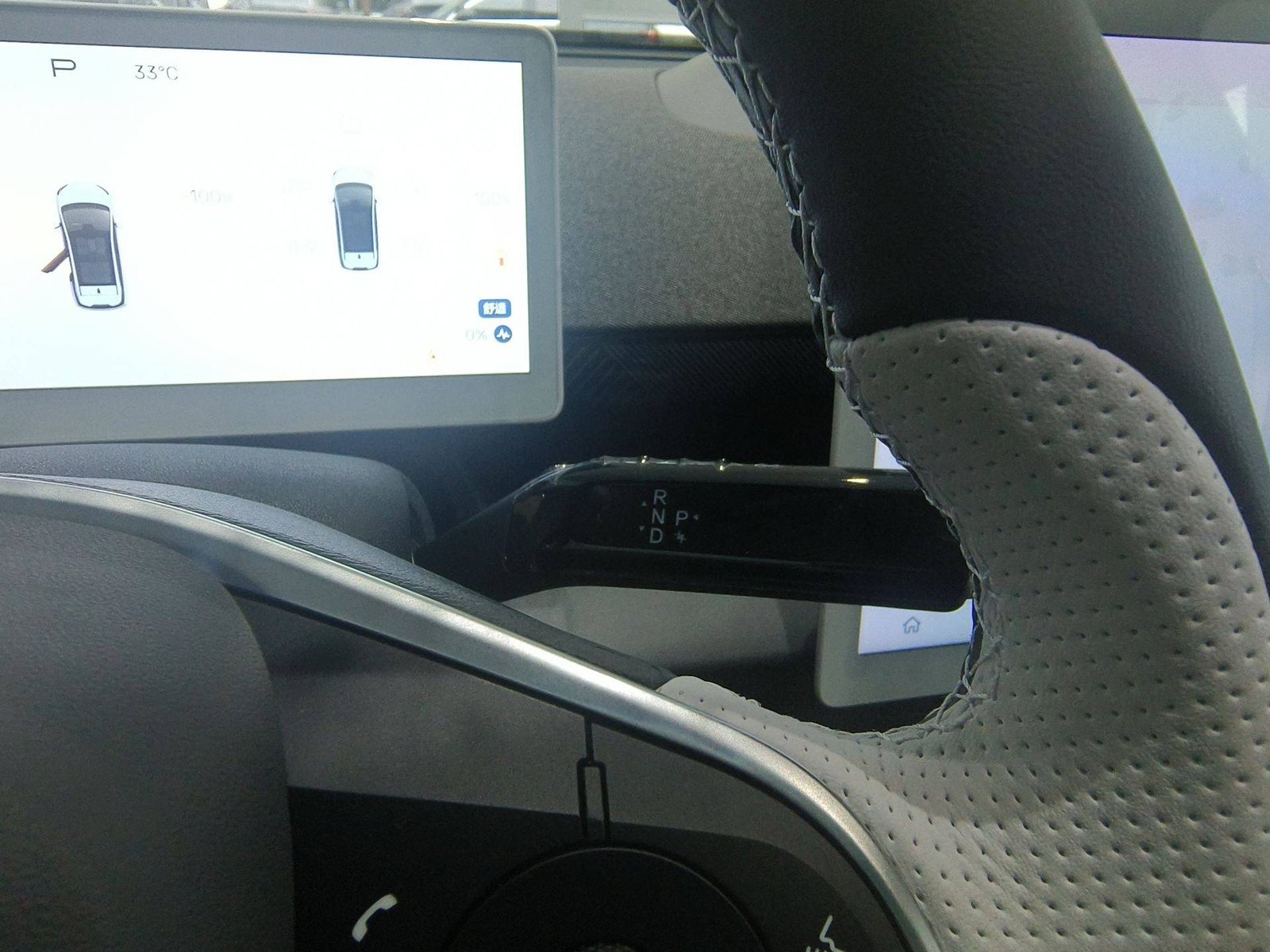

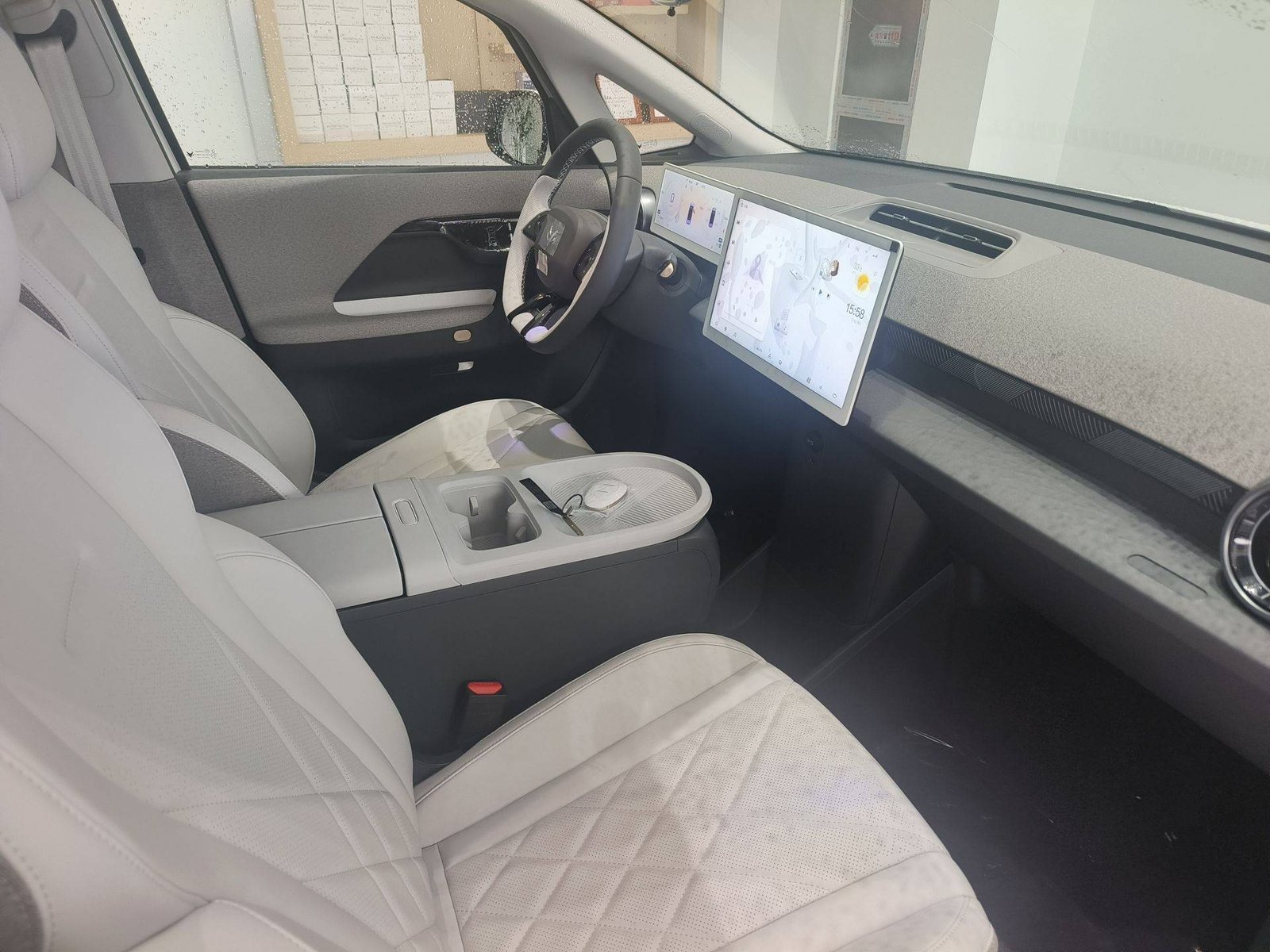

In terms of interior, the Arcfox Koala follows a minimalist style, with a clear layout of the center console, round air vents and a floating center control screen adding a sense of refinement. The three-spoke multi-function steering wheel, full LCD instrument panel and large-size center control screen create a strong technological atmosphere. Inside the car, the special application of “gum-level chewing” material creates a nearly “0-formaldehyde and 0-benzene” cabin environment, balancing aesthetics and health.
Performance
In terms of performance, Arcfox Koala is equipped with a permanent magnet synchronous motor with a total power of 120kW and a battery pack with a capacity of 58.86kWh. Under CLTC conditions, the range of Arcfox Koala can reach up to 500km, which is enough to meet the needs of daily travel. Fast charging technology support, only 0.43 hours can be charged to 80%, providing a convenient charging experience.
Configuration Options
In terms of configuration, the Arcfox Koala offers a variety of model options, including the Family and Parent-Child versions, as well as their Pro versions. Standard features include L2-level driver assistance, 360-degree panoramic video, and keyless entry/start. The top-end models also offer higher-order driver assistance features, such as automatic parking entry and remote parking, to meet the individual needs of different users.
| 2024 Extreme Fox Koala Home Edition AIR | |
|---|---|
| Basic Information | |
| Availability | 2024.02 |
| vehicle class | Compact MPV |
| Length*Width*Height(mm) | 4500*1870*1655 |
| Type of energy | all-electric |
| CLTC pure electric range (km) | 500 |
| Total motor power (kW) | 120 |
| Total motor torque (N-m) | 240 |
| Maximum speed (km/h) | 160 |
| Battery Type | lithium iron phosphate battery |
| Battery capacity (kWh) | 58.8 |
| Fast charging time (h) | 0.43 |
| Fast charging capacity (%) | 30-80 |
| Warranty Policy | Five years or 120,000 kilometers |
| body of automobile | |
| Length (mm) | 4500 |
| Width (mm) | 1870 |
| Height (mm) | 1655 |
| Wheelbase (mm) | 2820 |
| Front wheelbase(mm) | 1597 |
| Rear wheelbase(mm) | 1600 |
| Weight (kg) | 1800 |

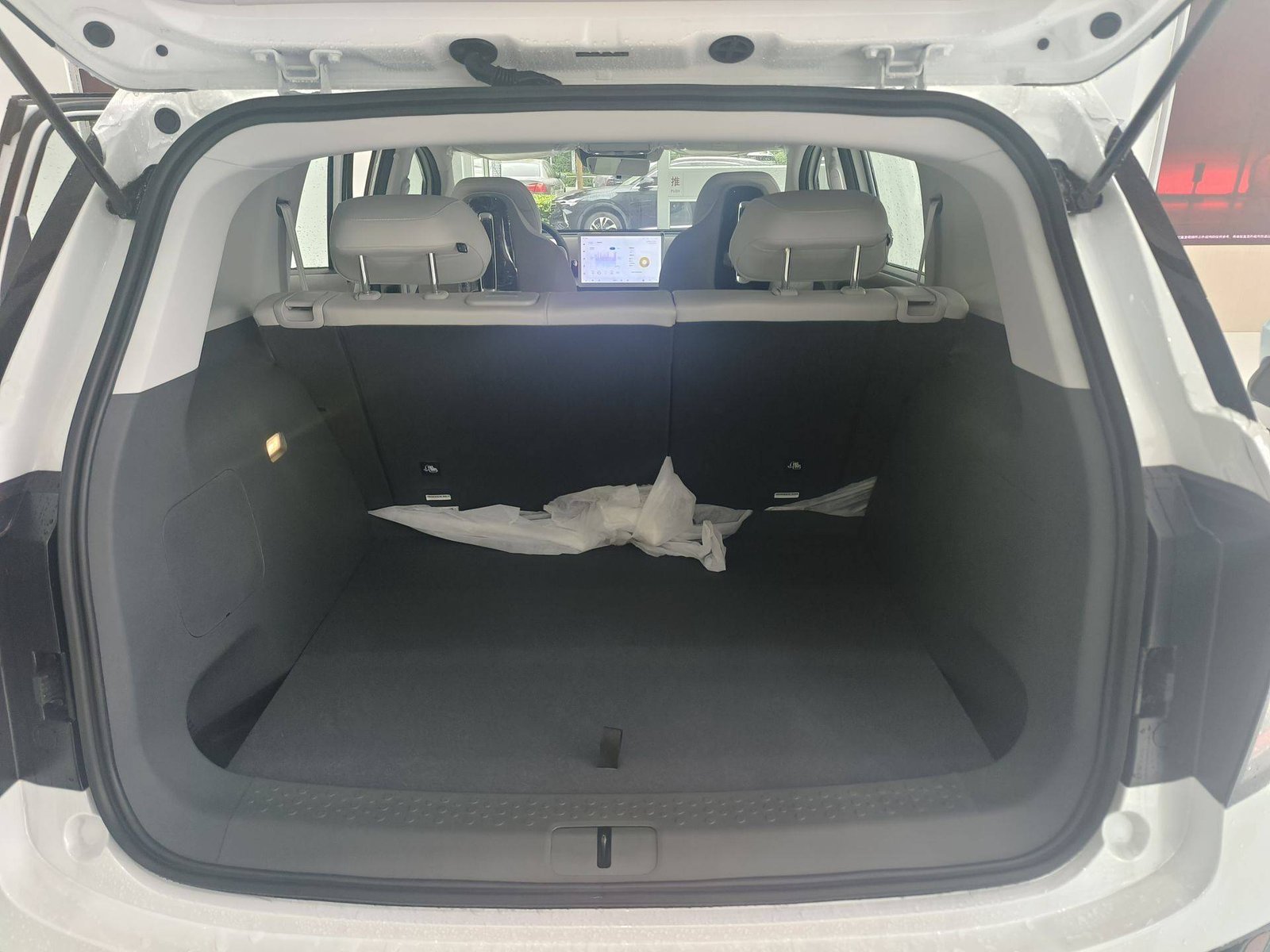

| Luggage compartment volume (L) | 410 |
| Number of doors (pcs) | 5 |
| Number of seats (pcs) | 5 |
| electric motor | |
| Total motor power (kW) | 120 |
| Total motor torque (N-m) | 240 |
| Maximum power of front electric motor (kW) | 120 |
| Maximum torque of front motor (N-m) | 240 |
| CLTC pure electric range (km) | 500 |
| Battery capacity (kWh) | 58.8 |
| 100km power consumption (kWh/100km) | 14.7 |
| Slow charging time (h) | 10.5 |
| Fast charging time (h) | 0.43 |
| Motor structure | permanent magnetism |
| Principle of motor operation | synchronization |
| Number of drive motors | single motor |
| Motor Layout | preamplifier |
| Battery Type | lithium iron phosphate battery |
| Battery Cell Brands | Ningde Times |
| Battery cooling method | liquid cooling |
| power exchange | unsupported |
| Battery Energy Density(Wh/kg) | 144 |
| fast charging function | be in favor of |
| Fast charging capacity (%) | 30-80 |
| Battery Pack Warranty | awaiting investigation |
| Battery preheating | ● |
| external discharge | - |
| Chassis/steering | |
| Driving form | front drive |
| Front suspension type | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension |
| Steering assist form | electric power assist |
| peristaltic mode | ● |
| Wheels/Brakes | |
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type |

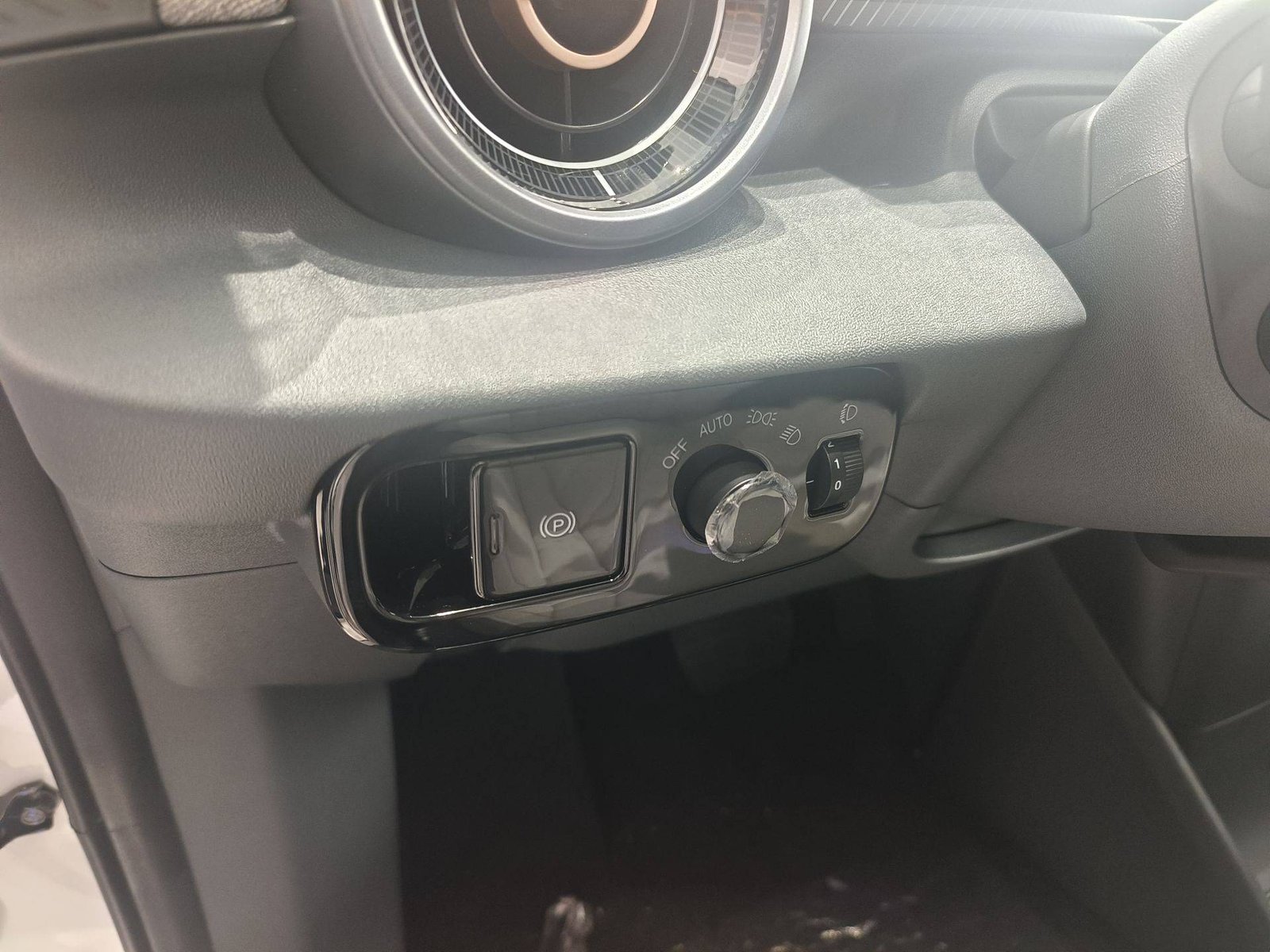

| Parking brake type | electronic parking |

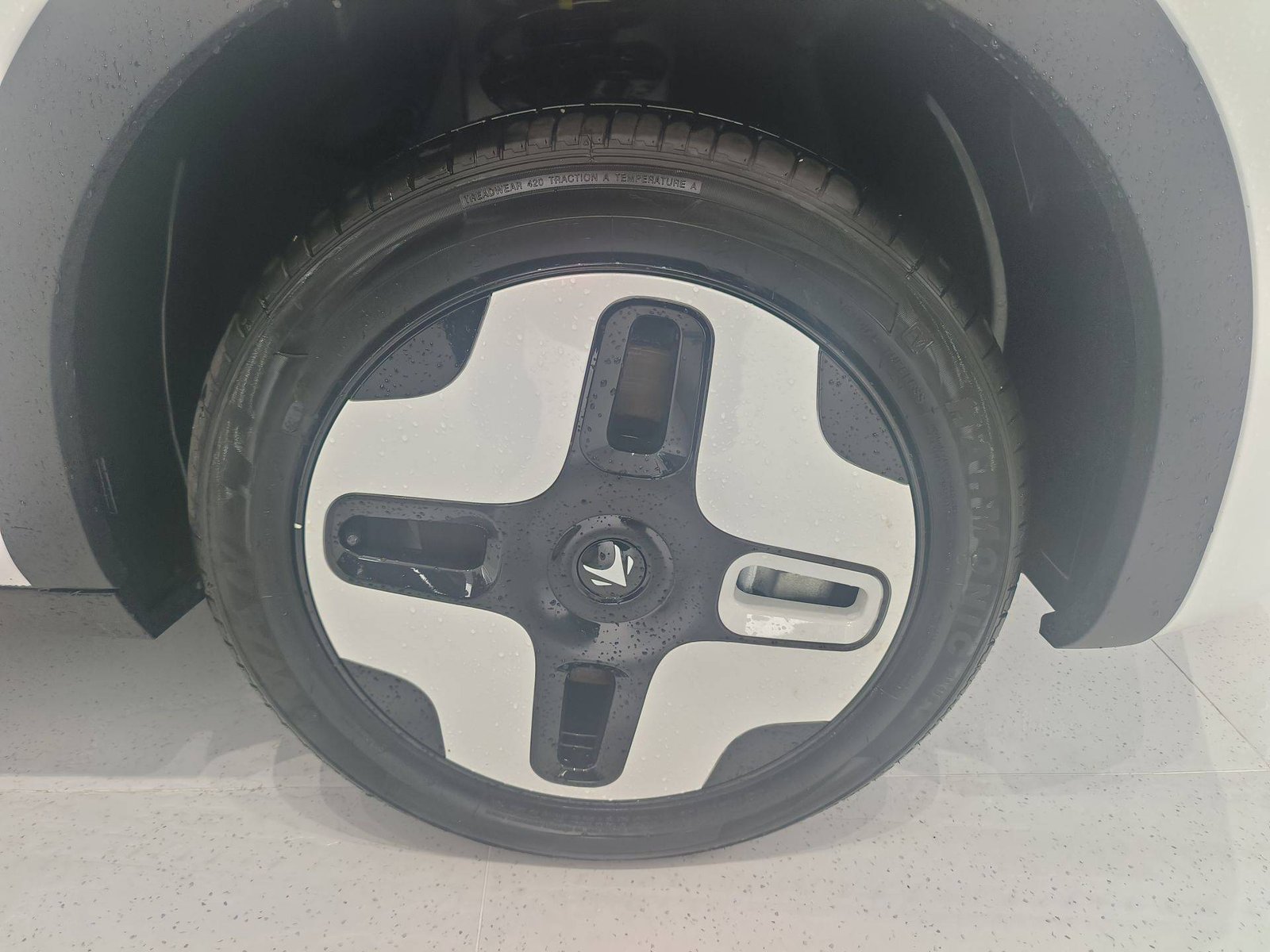

| Front Tire Specification | 215/50 R17 |
| Rear Tire Specification | 215/50 R17 |
| Wheel Material | steel (chemistry) |
| Active/passive safety features | |
| ABS anti-lock | ● |
| Brake force distribution (EBD/CBC etc.) | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● |
| Traction control (ASR/TCS/TRC etc.) | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● |
| Active braking/safety systems | - |
| merging aid | - |
| lane keeping assist system | - |
| lane departure warning | - |
| Road traffic signage recognition | - |
| DOW Open Door Alert | - |
| front exhaust airbag | :: Driver's airbag |
| ●Passenger airbag | |
| ●Side airbags | |
| Rear airbags | - |
| Tire Pressure Detection Device | ●Display |
| Seat Belt Reminder | ●Principal Driver |
| ISOFIX child restraints | ● |
| Forward Collision Warning | - |
| Rear Collision Warning | - |
| Auxiliary/Manipulation Configurations | |
| parking radar | ● Post |
| Driver Assistance Video | ● Backup camera |
| Transparent chassis/540 degree image | - |
| cruise control | ●Cruise control |
| Driving Mode Switching | :: Economy |
| :: Standard/comfort | |
| ● Customization/Personalization | |
| hill-holding aid | ● |
| automatic parking | ● |
| automatic parking | - |
| remote control | - |
| Assisted driving level | - |
| External/anti-theft configurations | |

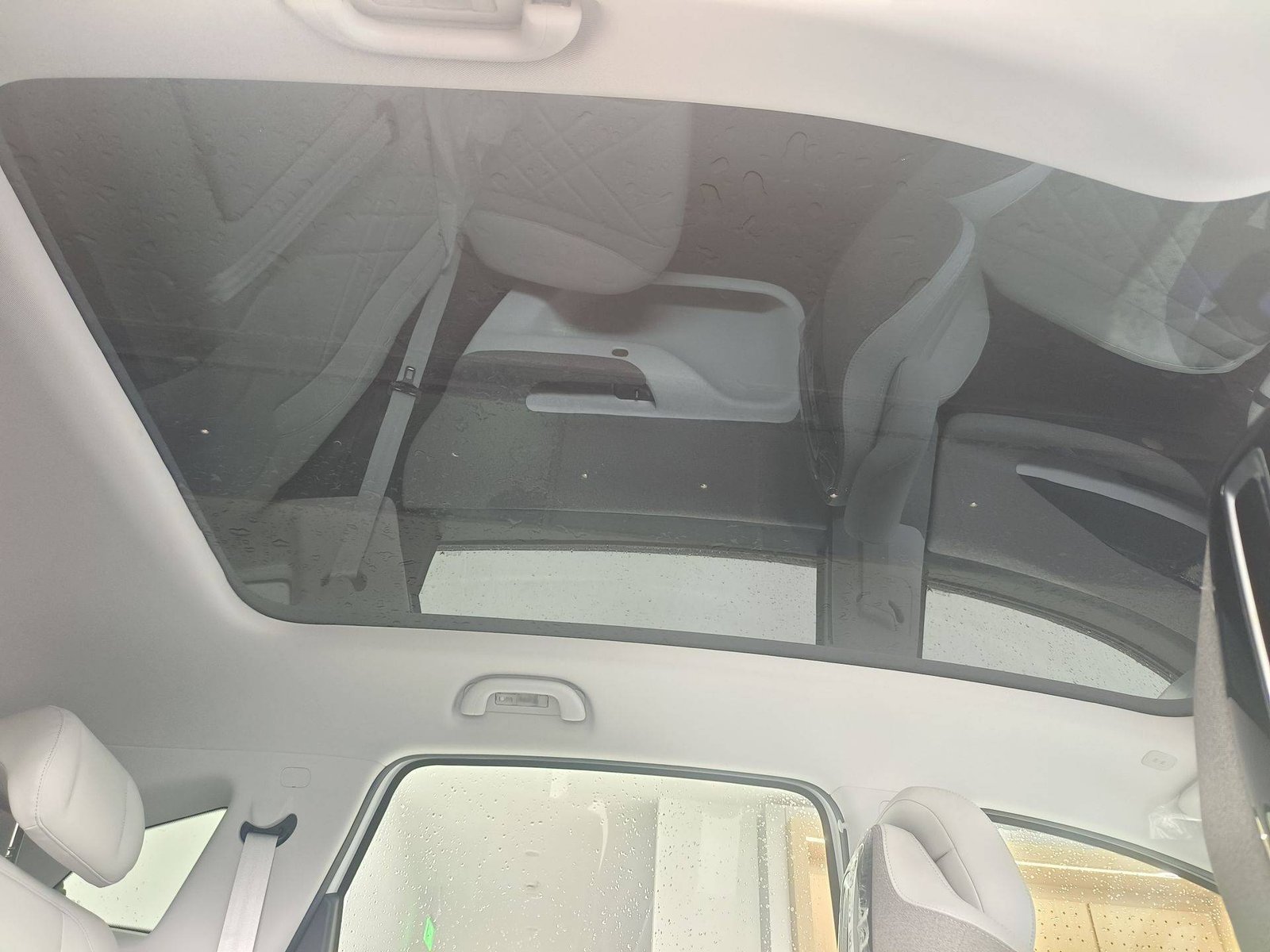

| skylights | ● Non-opening panoramic sunroof |
| Concealed power door handles | ● |
| Trunk opening method | - |
| Power trunk position memory | - |
| Key Type | ●Remote key |
| Keyless entry | ● |
| Keyless Start System | ● |
| Remote start function | ● |
| Central locking in the car | ● |
| Internal Configuration | |
| Steering wheel material | ● Leather |
| Steering Wheel Adjustment | ● Manual |
| Adjustable up and down | |

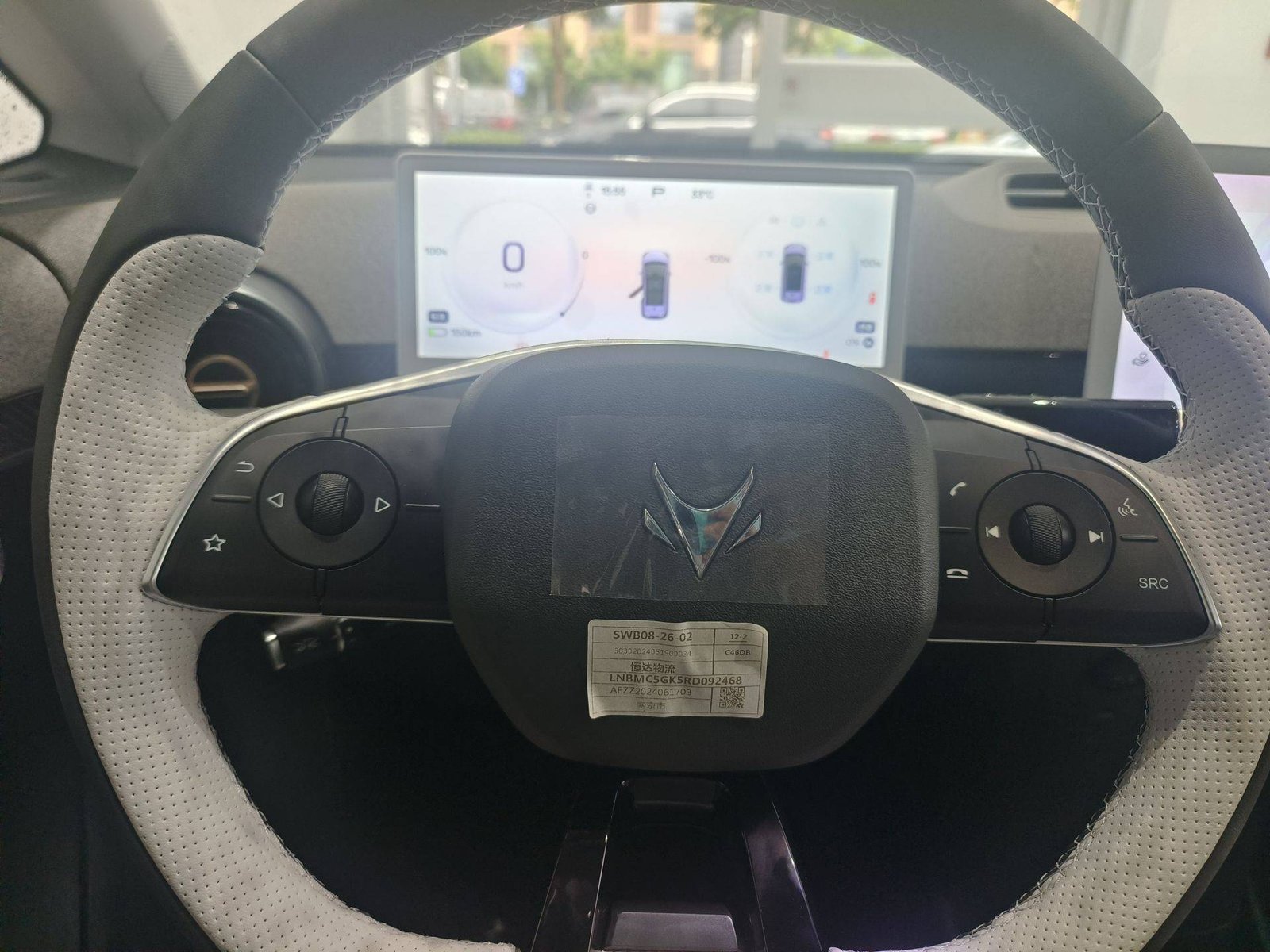

| Steering wheel functions | :: Multifunctionality |
| center armrest | ●Front |
| ● Post | |
| Sun visor vanity mirror | ● |
| Liquid Crystal Instrument Size | 10.25 in. |
| Wireless charging function for cell phones | - |
| Intelligent Hardware | |
| Number of cameras | :: 1 |
| Number of ultrasonic radars | :: 4 |
| Number of millimeter-wave radars | - |
| seating | |

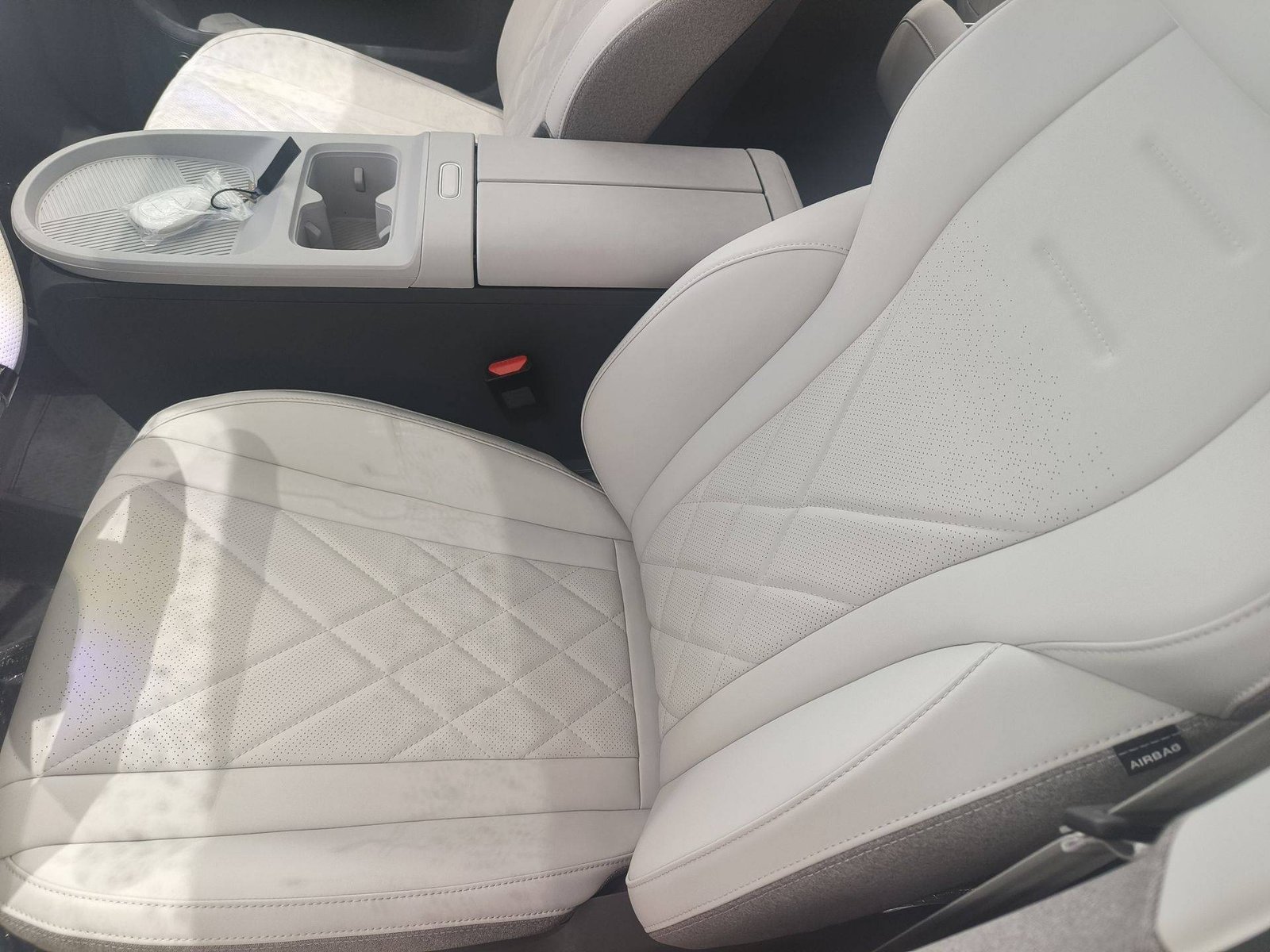

| Seat Material | :: Imitation leather |
| Main Driver's Seat Function | - |
| Passenger seat function | - |
| Rear seat function | - |
| Seat electric adjustment | - |

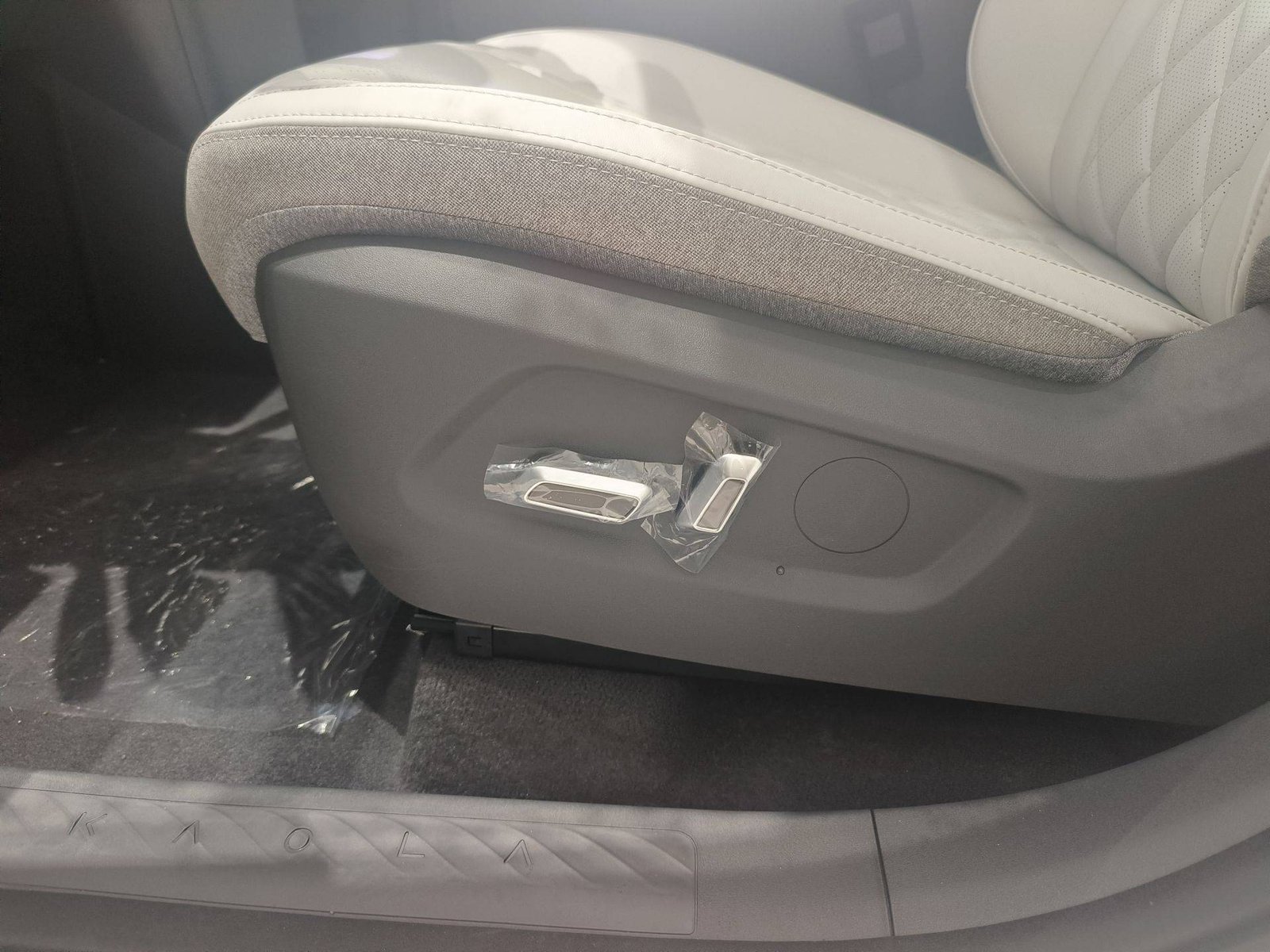

| Integral adjustment of the main driver's seat | ●Before and after |
| ●Backrests | |
| ●High/Low (2-way) | |
| Partial adjustment of the main driver's seat | - |
| Passenger seat overall adjustment | ●Before and after |
| ●Backrests | |

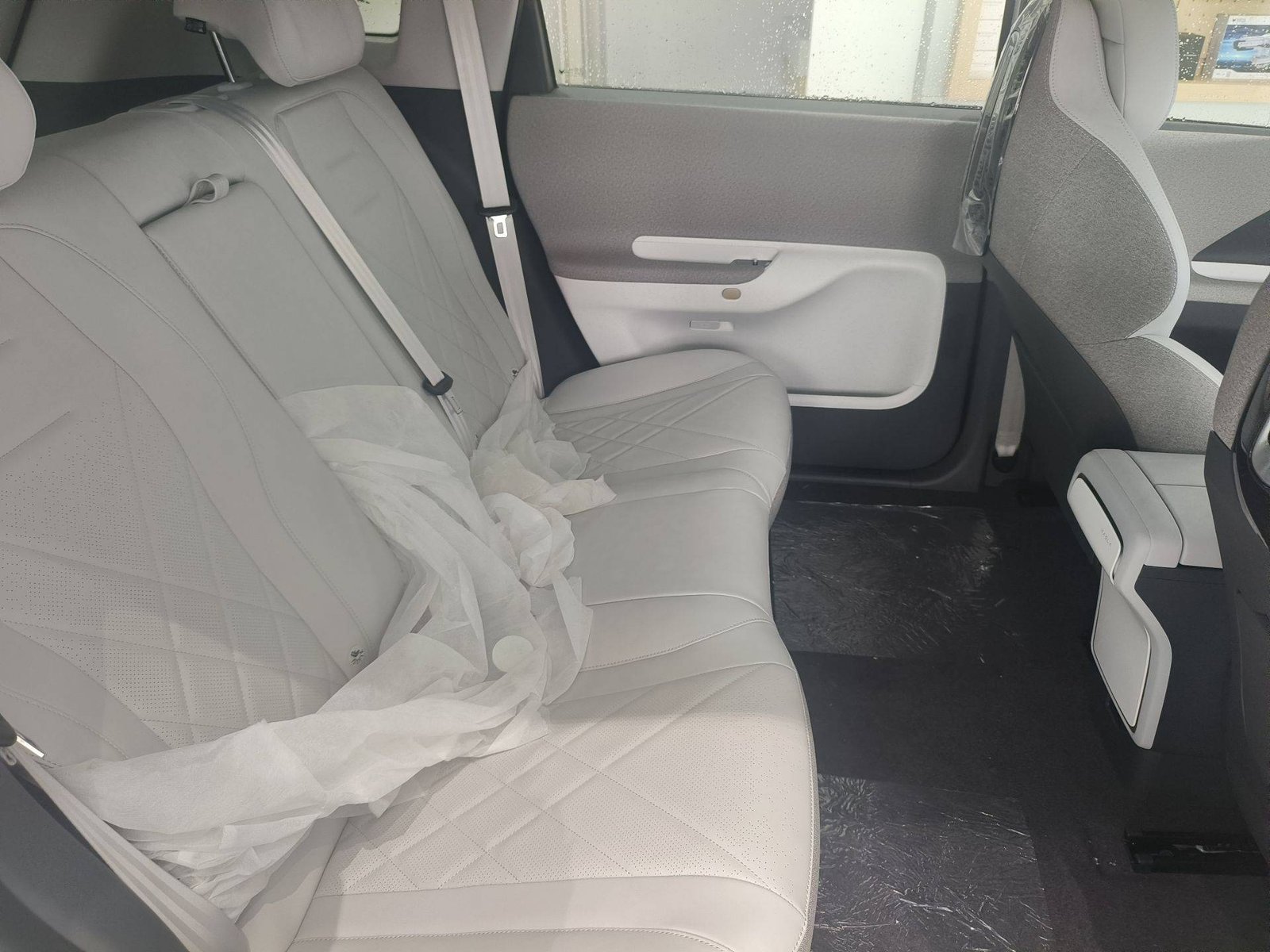

| Second row seat adjustment | Adjustable angle |
| Second row of individual seats | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Rear Cup Holder | ● |
| multimedia | |
| Large color screen in the center console | ● |
| satellite navigation system | ● |
| Navigating the road information display | ● |
| Map Branding | ●Gold |
| Roadside assistance calls | ● |
| Automotive Intelligence Chip | Qualcomm Snapdragon 8155 |
| Mobile APP Remote Function | ●Door control |
| ●Window control | |
| ● Vehicle start-up | |
| ● Charge management | |
| ● Air conditioning control | |
| :: Vehicle condition check/diagnosis | |
| :: Vehicle location/search | |
| ● Owner services (find charging stations, gas stations, parking lots, etc.) | |
| Bluetooth/car phone | ● |
| Cell phone connectivity/mapping | ● Factory Connect/Mapping |
| Number of audio speakers | 6 |
| Voice Recognition Control System | :: Multimedia systems |
| :: Navigation | |
| :: Telephone | |
| :: Air conditioning | |
| ● Window | |

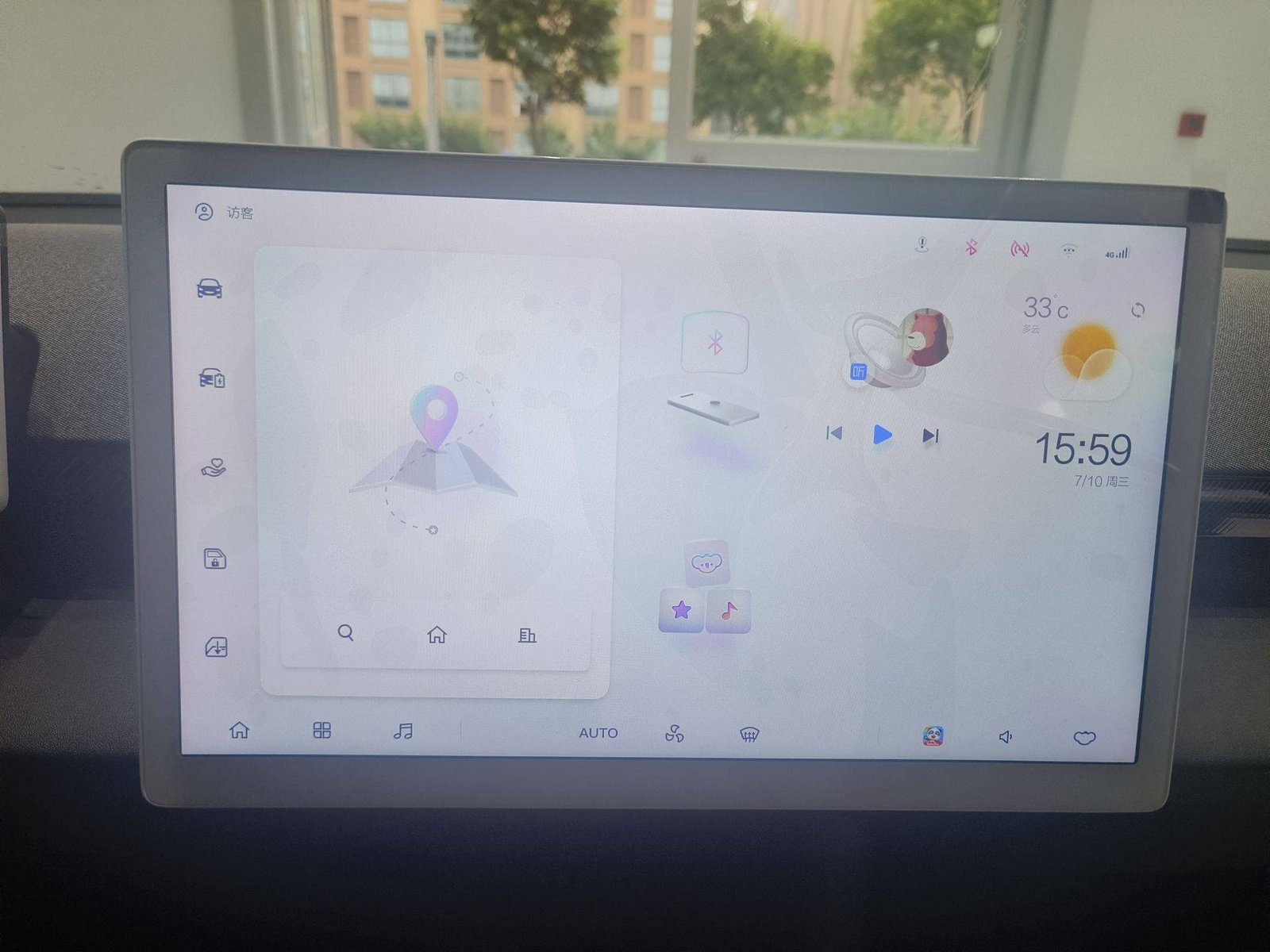

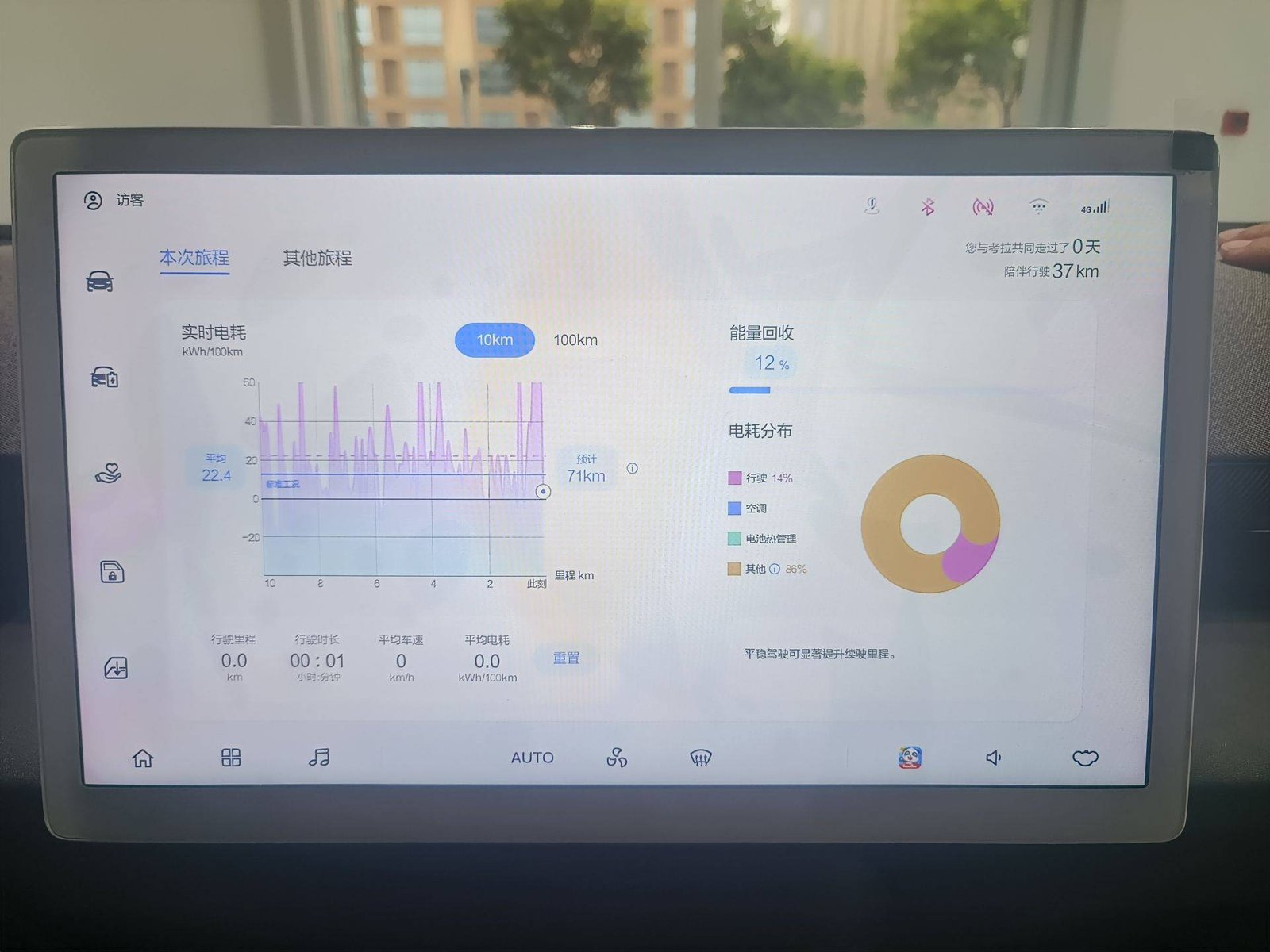

| Center screen size | ●14.6 inches |
| 4G/5G networks | ●4G |
| Telematics | ● |
| OTA upgrade | ● |
| Car KTV | ● |
| Rear control multimedia | - |
| Interface Support | ●USB port |
| ●Type-C port | |
| Power Support | - |
| illumination | |
| low beam (headlights) | ●LED |
| high beam (headlights) | ●LED |
| LED daytime running lights | ● |
| Adaptive high and low beam | ● |
| Adjustable headlights | ● |
| Automatic headlights | ● |
| Delayed headlight off | ● |
| Interior Ambient Lighting | - |
| Glass/Mirror | |

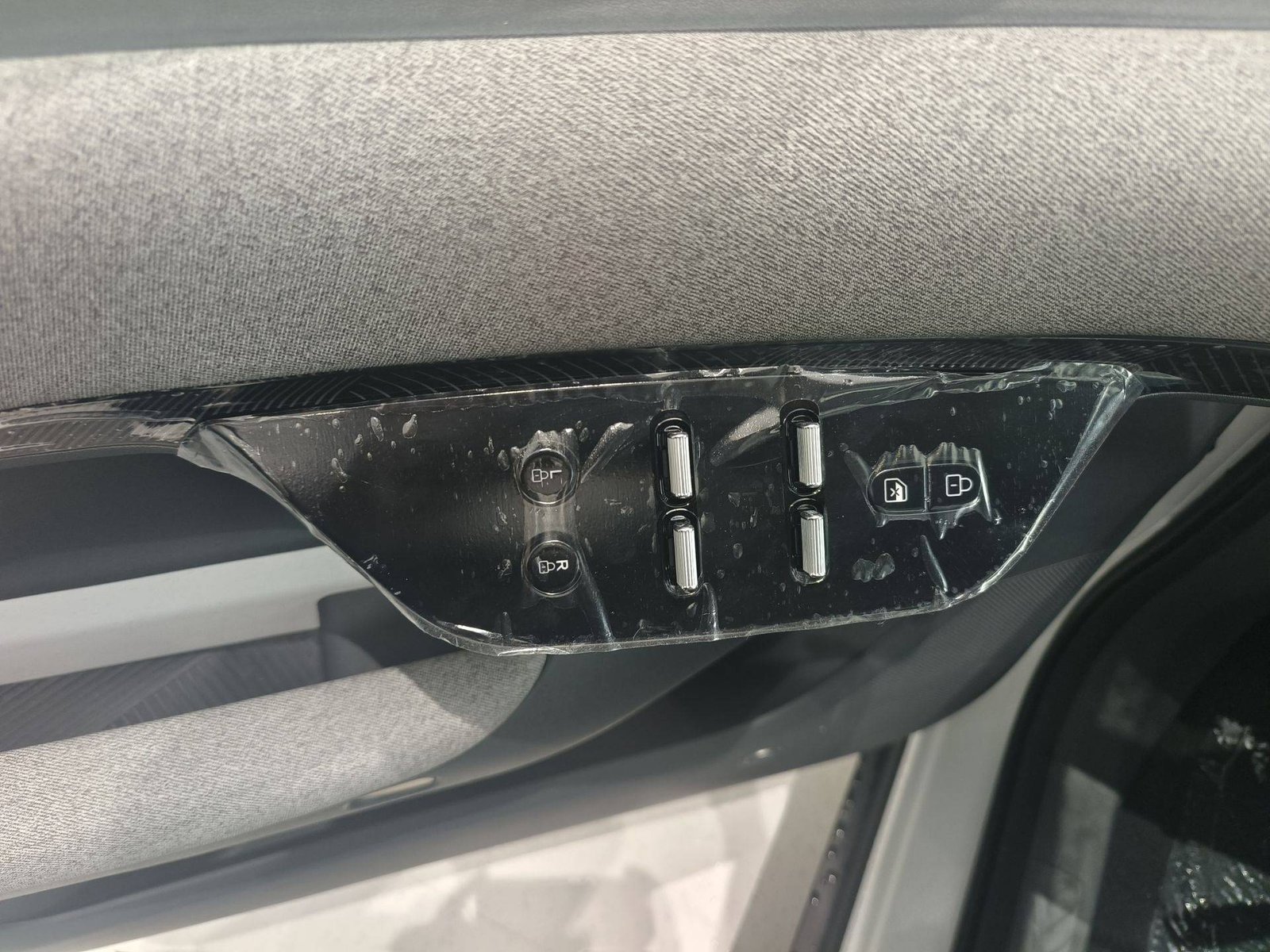

| power window | ●Front |
| ● Post | |
| One-touch window lifting | ● Full vehicle |
| Anti Window Pinch Handle | ● |
| outside rearview mirror | ●Motorized adjustment |
| rearview mirror | ●Manual anti-glare |
| sunshade | - |
| inductive wiper | ● |
| Air conditioners/refrigerators | |
| Air conditioning control method | ● Automatic control |
| rear air vent | - |
| Temperature zone control | ● |
| PM2.5 filtration | ● |
| Car Refrigerator | - |
